Outdoor LED screens
Outdoor LED screens are designed to work outdoors, so the main indicators are protection from environmental influences (IP 65-67) and high brightness (6500-9000 nits). LED outdoor screens are able to work in all weather conditions all year round and show a bright picture even in direct sunlight. The scope of outdoor led screens is very wide: modern architectural design of office buildings and shopping centers, outdoor advertising, street cinemas, sports scoreboards, gas station design and much more.
Our company produces various types of outdoor led screens. The required indicators are selected depending on the specific purpose and customer requirements. The price of outdoor LED screens depends on the pixel pitch (the distance between the diodes, on which the screen resolution depends), the brightness of the screen, the design of the case (cabinet or module) and its security. PIXEL-MEDIA offers outdoor screens with 10mm, 8mm, 6mm, 4mm pixel pitch. The latest developments of our company are outdoor LED screens with a small pixel and the highest resolution - P3 and P2 Outdoor.
LED screens for outdoor advertising are a modern solution for those who keep up with the times. Our company offers ready-made cases for advertising operators - a video board in the scroll format and a media city light. Every year, LED technologies become more accessible, which means that soon digital advertising will completely replace static advertising. Outdoor advertising screens are your way to be seen in the modern city.
Technologies
Aluminum die-cast cabinet.
It is used as rental equipment for concerts, presentations and other events. Light weight, convenient mounting and switching via PowerCON allow you to quickly assemble a screen of any shape. Protected on all sides IP 65-67. Service front and back. A self-supporting cabinet of this type, thanks to reinforced inter-cabinet locks, allows you to install a screen with a height of more than 10 meters on a suspended basis without bulky structures.
Moisture resistant frontopen cabinet.
The ideal solution for media signage and screens no taller than 1.5m. Fully sealed from all sides according to IP65 technology. Possibility of installation on any surface without a complex design and the need for rear maintenance. To replace modules and power supplies, the interior of the cabinet is accessed from the front. The cabinet opens with a special key, which ensures the safety of equipment.
Moisture resistant steel cabinet.
Mainly used for stationary screens. Although it can be used in the rental industry. Screen maintenance is accessed from the back through the service door using a special key. The main advantage of this technology is that cabinets are mounted directly on a metal frame and do not require additional decorative sheathing and sealing. The cabinet has a high degree of protection - IP 65.
Simple steel cabinet.
The most common solution for stationary screens. Thanks to the open back, the weight of the screen is reduced, there is no need for additional cooling. This significantly reduces its cost and energy consumption. It is mainly used to install advertising video boards and on building facades. The front part is completely sealed - IP65, the back side of the screen must be covered with sealed panels.
Magnetic mounts.
The most budget option for an outdoor screen. The modules are attached using special magnetic mounts to a supporting metal frame sheathed with an aluminum frame. The space between the modules and the frame is sealed with a silicone gasket. It is not recommended to use this technology on screens with a total area of more than 10 m2 or a height of more than 2 m. The main area of use is media signs, small advertising screens, media city lights. The absence of a silicone gasket reduces the degree of protection to IP54.
Cabinet with front modules.
In this version, individual LED modules are attached to the cabinet not from the back, but from the front, using special screws that are located between the LEDs. The front modules can be used in any type of cabinet (moisture-resistant, plain, aluminum) using a special silicone gasket, which ensures complete tightness with a degree of protection up to IP67. The possibility of frontal access allows you to reduce the thickness of the screen and abandon the complex metal frame.
Specification
| Pixel Pitch | Diode type | Diode size | Module size (W x H) mm | Resolution (W x H) pixels | Number of pixels/m2 | Brightness CD/m2 | Update frequency |
|---|---|---|---|---|---|---|---|
| Ph-3 | SMD | 1921 | 192x192 | 64 x 64 | 111111 | 5500 | 1920-3840 Hz |
| Ph-4 | SMD | 2525 | 256x128 | 64 x 32 | 62500 | 7000 | 1920-3840 Hz |
| Ph-5 | SMD | 2828 | 320x160 | 64 x 32 | 40000 | 7000 | 1920-3840 Hz |
| Ph-6 | SMD | 3535 | 192x192 | 32 x 32 | 27778 | 8500 | 1920-3840 Hz |
| Ph-8 | SMD | 3535 | 256x128 | 32 x 16 | 15652 | 8500 | 1920-3840 Hz |
| Ph-10 | SMD | 3535 | 320x160 | 32 x 16 | 10000 | 8500 | 1920-3840 Hz |
| Ph-10 | DIP | 346 | 320x160 | 32 x 16 | 10000 | 8500 | 1920-3840 Hz |
| Ph-12 | DIP | 346 | 400x200 | 32 x 16 | 6400 | 8500 | 1920-3840 Hz |

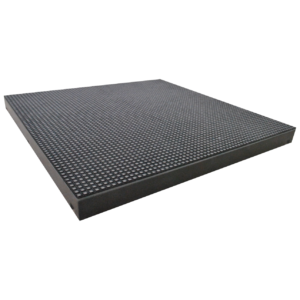

Ph3

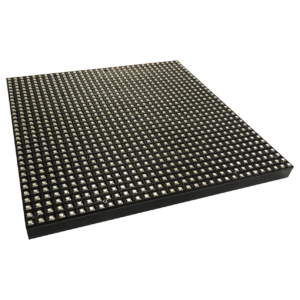

Ph4

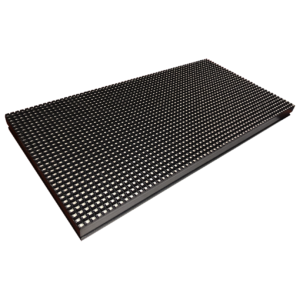

Ph5

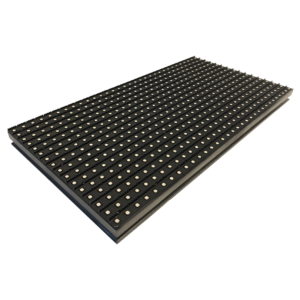

Ph6

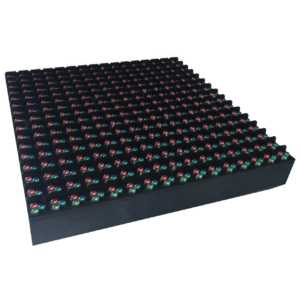

Ph8

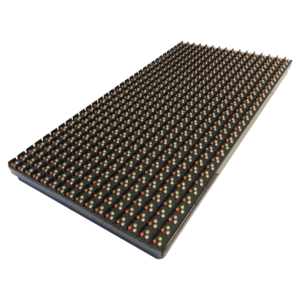

Ph10

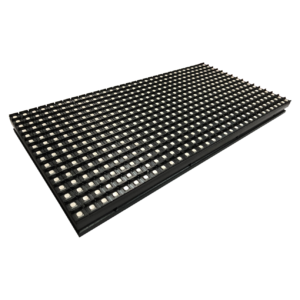

Ph10
