Transparent LED screens
Transparent LED screens are currently the most relevant and progressive technology. Diodes are located on a printed circuit board with a lattice base. The degree of transparency of the screen can reach 60 - 80%. The office resembles an ordinary double-glazed window, gives out video content without blocking the sunlight to employees and visitors of shopping and business centers. Transparent screens look especially impressive on glass showcases of car dealerships. Commercials are shown right in the windows, while during the day you can see what is happening inside the premises, and at night the facade turns into a screen. Transparent screens are also used in interior design. Offices with internal glass walls can be equipped with such screens. In the design of entertainment facilities with the help of transparent screens, you will get an incredible futuristic interior. The future of modern design and architecture lies with this technology
There are transparent LED screens for outdoor and indoor use. We offer you transparent led screens with a pixel pitch of 10.42, 6.25, 3.9 mm.
Technologies
Transparent screen FRONT LED.
This kind of transparent screen with 60% transparency gives brightness from 3000cd/m2 to 5500cd/m2. It is installed indoors with the possibility of broadcasting to the street. A self-supporting cabinet with inter-cabinet locks allows you to install a screen on a suspended basis up to 6 meters high. Inside each cabinet, with the help of a special hub, printed circuit boards on a lattice basis are installed, on the front side of which individual diodes are soldered.
Transparent screen SIDE LED.
This type of screen transmits an image with a brightness of 4500cd/m2. The technology of soldering the diode onto individual strips of the printed circuit board from the side was used, which gives a maximum transparency of 70-80%. Plans are placed in a horizontal position. The cast aluminum cabinet is mounted with inter-cabinet locks into a suspended screen up to 6 meters high. This type of cabinet is used indoors, the degree of protection is IP51.
Transparent screen FRONT LED Outdoor.
The equipment is designed for outdoor use with an IP65 degree of protection and a brightness of 5500-6500cd/m2, which provides a contrast image in bright sunlight. In this case, front-facing diode technology with up to 75% transparency was used. Cast aluminum cabinet allows you to install a screen on a suspended basis up to 10 meters in length, as well as use the screen for hire. The screen is serviced from the back and front.
Specification
| Diode type | Pixel Pitch | Diode size | Cabinet size (W x H) mm | Resolution (W x H) pixels | Number of pixels/m2 | Brightness CD/m2 | Update frequency |
|---|---|---|---|---|---|---|---|
| SMD Front | PH – 3.91х7.81 | 1820 | 1000 x 500 | 256 x 64 | 32 786 | 3500 | 1920-3840 Hz |
| SMD Front | PH – 7.81х7.81 | 1820 | 1000 x 500 | 128 x 64 | 16 384 | 3000 | 1920-3840 Hz |
| SMD Side | PH – 3.91х7.81 | 3512 | 1000 x 500 | 256x 32 | 32 786 | 5000 | 1920-3840 Hz |
| SMD Side | PH – 7.81х7.81 | 3512 | 1000 x 500 | 128x 32 | 16 384 | 4500 | 1920-3840 Hz |
| SMD Front | PH – 10.42х10.42 | 2727 | 1000 x 500 | 96 x 48 | 9 216 | 5500 | 1920-3840 Hz |

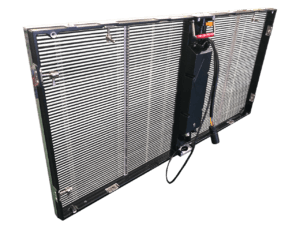

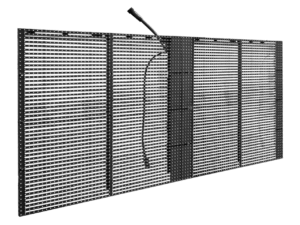

Transparent screen FRONT LED

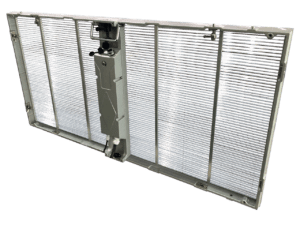

Transparent screen SIDE LED

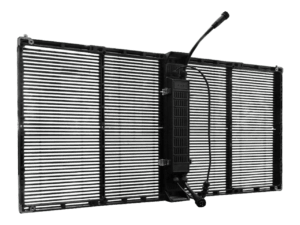

Transparent screen FRONT OUTDOOR LED
