Media facades
Media facade is a modern technology that allows using many individual LED elements to turn the facade of a building into a huge screen. LED media facades can also serve as original dynamic lighting.
The main function of the LED screen is to attract the attention of thousands of citizens. Due to their impressive size and creative content, they change the face of the city and become the hallmark of modern megacities. The media facade often performs an image function and is actively used in architecture to draw attention to the supporting building. This turns it into a unique art object. Tourists gather around such buildings, it appears in guidebooks and photo reports.
The design of the media facade consists of individual elements in the form of LED strips, which together turn into a huge screen. Our company has its own production of media facades and has been doing this for more than 8 years. During this time, we have gained vast experience in the design and installation of complex high-rise screens.
The main advantage of the media facade is its low weight and ease of installation. This makes it possible to install a bulky design screen on any surface, whether it be glass, aluminum, brick, concrete. Our company has developed special fixtures for any type of building facade, and due to its light weight, we are able to manufacture media facades of complex shapes and sizes.
The price of a media facade is calculated based on its size and the estimated pixel pitch (distance between LEDs). The pixel pitch depends on the distance between the diodes on a separate line and the location of the lines relative to each other. We have LED strips with pixel pitch from 10mm to 32mm. Basically, LED media facades have a large area and are viewed from a long distance, so options with a large step are used. Usually, increasing the pixel pitch results in a decrease in brightness, but our engineers have produced sticks with an unprecedentedly bright “pixel” that allows you to produce a clear picture even in direct sunlight.
The media facade provides the owners of the building, in addition to the image effect, a stable income from advertising. Large advertisers are happy to use large screens to display their content. This is one of the most effective types of advertising at the moment. With a commercial approach, investments in a media facade pay off in 1-2 years.
Turning to the company Pixel-Media, in order to buy a media facade, you get a unique project designed specifically for the characteristics of your object. We will provide visualization free of charge. It will be a decision that will change the face of any city.
Technologies

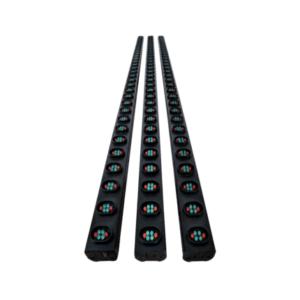

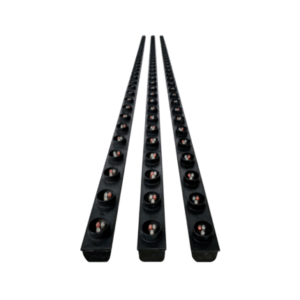

Rack media facade.
The screen is assembled from individual LED strips. DIP diodes of three colors are located on them at a certain interval. The pixel pitch on the bar is from 25 to 64 mm. Orientation bars on the screen is possible in a vertical and horizontal position. The closer the bars are to each other, the brighter the media facade and the higher its resolution, which means the better the video quality. The absence of a cabinet allows you to assemble arched and cylindrical media facades from planks. The size of the bar also varies from 200 to 2000mm. This makes it possible to make installations of complex shape. Power and control units are placed in a separate box.

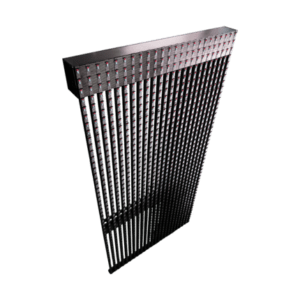

Media facade cabinet planks.
The structural element in this case is a special type of light cabinet. The power supplies and the control system are placed inside a metal box in the form of a pencil case, and strips with DIP or SMD diodes are attached to it. Each cabinet is connected with one cable. This type of media facade is the most common technology for installing large areas, as well as the most reliable. The media facade package includes a special aluminum substructure on which cabinets are mounted. Substructure fastenings are designed for any type of facade - glass, aluminum, concrete.

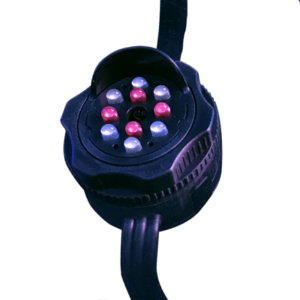

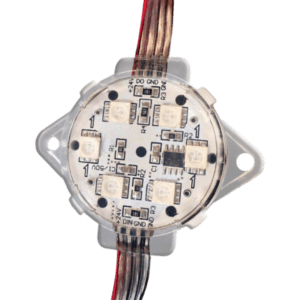

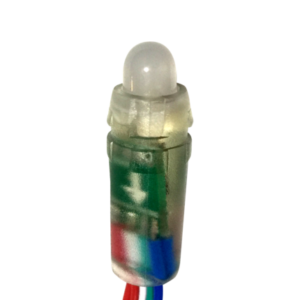

Media facade Smart Pixel.
The structural element of the screen is a separate washer with a group of SMD or DIP diodes. It is a separate pixel, a light source programmed to broadcast an image or decorative lighting. The washers are interconnected by power and signal wires. The quality and brightness of the image depends on the distance between them. There are many ways to install these elements of the media facade (on cables, clips, cutting into the surface, etc.). This allows you to create any design forms and 3D art objects.

Slats with diffuser.
Individual LED strips are placed in a special dissipative plastic case. It is widely used in architecture and is programmed as a solid screen for broadcasting a simple graphic image or as a dynamic backlight. They are mounted on the facade of the building at a considerable distance from each other in profiles between double-glazed windows. This makes it invisible from inside the premises, but outside the whole building at night the building turns into an LED installation. Since the planks are far apart, the project cost per unit area is low.

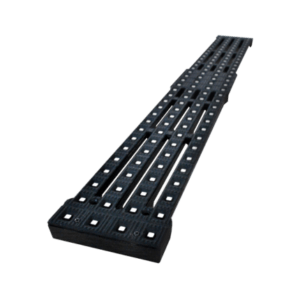

Media facade screen - grid.
This type of equipment is essentially an LED screen and has high technical performance in terms of refresh rate and brightness (3840Hz, 7500cd/m2) and. Special type modules make it 30%-50% transparent. Cabinets are made of aluminum in the size of 1000 x 500mm and 500 x 500mm with a pixel size of 15 to 10mm. The cabinets have rear and front service, which allows installing a screen with a minimum thickness (from 100 mm) without the use of complex metal structures. It is used in the advertising industry, as well as in the rental industry.
Specification
Rack media facade
| Model | Bar Size mm. | Pixel configuration | Number of pixels on bar pc | Pixel Pitch bar mm. | Weight of one units kg. | Consumption electricity | The brightness of one units |
|---|---|---|---|---|---|---|---|
| MZ-25 | 1000x28x18,7 | DIP346 2R2G2B | 40 | PH-25 | 0,46 | 18w | 400 cd |
| MZ-32 | 1000x21x20 | DIP346 1R1G1B | 32 | PH-31,25 | 0,33 | 9,6w | 180 cd |
| MZ-64 | 1000x21x20 | DIP346 1R1G1B | 16 | PH-62,5 | 0,20 | 4,3w | 80 cd |
Media cabinet facade
| Model | Cabinet Size (WxH) | Pixel configuration | Cabinet Permission (W x H) mm | Pixel Pitch (W x H) | Cabinet Weight | Electricity consumption | Brightness m2 |
|---|---|---|---|---|---|---|---|
| PIX-1616 | 500x1000 | DIP346 1R1G1B | 23 x 64 | 15,625 x 15,625 | 10 kg | 170w | 9000 сd |
| PIX-1620 | 500x1000 | DIP346 1R1G1B | 25 x 64 | 20 x 15,625 | 9 kg | 150w | 8500 cd |
| PIX-1625 | 500x1000 | DIP346 1R1G1B | 20 x 64 | 25 x 15,625 | 8 kg | 140w | 8000 cd |
| PIX-1632 | 500x1000 | DIP346 1R1G1B | 16 x 64 | 31,25 x 15,625 | 8 kg | 130w | 7500 cd |
| PIX-2020 | 500x1000 | DIP346 1R1G1B | 25 x 50 | 20 x 20 | 9 kg | 125w | 7000 cd |
| PIX-2532 | 500x1000 | DIP346 1R1G1B | 20 x 32 | 32 x 16 | 8 kg | 120w | 6500 cd |
| PIX-5464 | 2000x2100 | DIP346 4R4G4B | 32 x 40 | 62,5 x 52,5 | 34 kg | 950w | 7000 cd |
Media facade Smart Pixel
| Model | Source size | Pixel configuration | Module size (W x H) mm | Pixel Pitch (W x H) | Weight of one unit kg. | Electricity consumption | The brightness of one units |
|---|---|---|---|---|---|---|---|
| FL-Smart | диаметр 40мм | DIP346 4R3G3B | 23 x 64 | 15,625 x 15,625 | 10 kg | 170w | 9000 сd |
| MZ-Smart | диаметр 40мм | SMD5050 RGBx6 | 25 x 64 | 20 x 15,625 | 9 kg | 150w | 8500 cd |
| SP-Диод | 11,7 x 38,5 мм | DIP346 1R1G1B | 20 x 64 | 25 x 15,625 | 8 kg | 140w | 8000 cd |
Media Facade strips with diffuser
| Model | Slat size mm. | Pixel configuration | Number of pixels per bar pcs | Pixel pitch mm | Weight of one unit kg. | Electricity consumption | The brightness of one units |
|---|---|---|---|---|---|---|---|
| MZSMD-48 | 1000x22x18 | SMD5050 RGB | 48 | PH-20,84 | 0,35 | 11,52w | 160 сd |
| MZSMD-32 | 1000x22x20,7 | SMD5050 RGB | 32 | PH-32 | 0,33 | 9,6w | 120 cd |
| MZSMD-64 | 1000x21x20 | SMD5050 RGB | 16 | PH-62,5 | 0,20 | 5,3w | 100 cd |
Media Facade Planks
| Step pixel | Type diode | Size diode | Module size (W x H) mm | Permission (W x H) pixel | Number pix/m2 | Brightness CD/m2 | Update frequency |
|---|---|---|---|---|---|---|---|
| PH - 15,625 | SMD | 3535 | 500 х 62,5 | 32 x 4 | 4096 | 6500 | 1920-3840 Hz |
| PH - 12,5 | SMD | 3535 | 500 х 100 | 40 x 8 | 6400 | 7000 | 1920-3840 Hz |
| PH - 10,417 | SMD | 3535 | 500 х 83,3 | 48 x 8 | 9216 | 7500 | 1920-3840 Hz |
* technical data may change according to customer requirements
